Arkon Heating infrared film

Far-infrared heating film is the new cutting edge technology which brings the comfort of warmth to your life. Infrared light is part of the sun’s invisible spectrum and while invisible, it is experienced as heat. Our heating systems work on the same principle as you would feel the warmth of the sun rays on your face even during a cold winter day.

Infrared rays heat the objects directly without the need of air or any other medium to carry them. Infrared heating works by heating walls, floors, objects in the heated area and a human body directly instead of heating the air. In turn the objects then release the heat into the environment. By having our system installed under your floors, you will experience warmth which could never be achieved by heating and blowing warm air.

Infrared systems are at least 50% more energy efficient than traditional heating methods. Completely zonable, these systems allow the end user to have absolute control of any specific area that requires heating. (Maintenance free with no moving parts, our systems are backed by 15 year limited warranty if installed by a certified technician).

The heater is perfect for most floor surfaces like laminate, engineered hardwood, tile, vinyl, carpet, etc.

The heater is perfect for any coverings:The heater is perfect for any coverings:

  • Traditional flooring
  • Laminate flooring
  • Flooring Carpet
  • Tile
  • Ceramic or stone tile
  • PVC

The heating film can be used in a:The heating film can be used in a:

  • Home
  • Condo
  • Office space
  • Hospitals and health-care facilities
  • Child care and long term care facilities
  • Places of worship
  • Restaurants and entertainment areas

Specification and standard of heating film in metric

Heating film with power consumption 160w/sq.ft.
Model

Widt  (cm)

Thickness
(mm)

Voltage

Power
(w/m)

Power
(W/sq.m)

Max
Temperature
(Celsius)

Packing
(m/per. Box)

Weight
(Kg/box)

TF804.2 80 0.338 220/240v 128w/m 160w/sq.m 35 - 40 100 31.7

Specification and standard of heating film in imperial

Heating film with power consumption 14.8w/sq.ft.
Model Widt (ft) Thickness
(mm)
Voltage Power
(w/ft)
Power
(W/sq.ft)

Max
Temperature
(Fahrenheit)

Packing
(ft/per. Box)

Weight
(lb/box)

TF804.2 31 1/2” 0.338 220/240v 11.9w/ft 14.8w/sq.ft 95 - 104 328 69.88

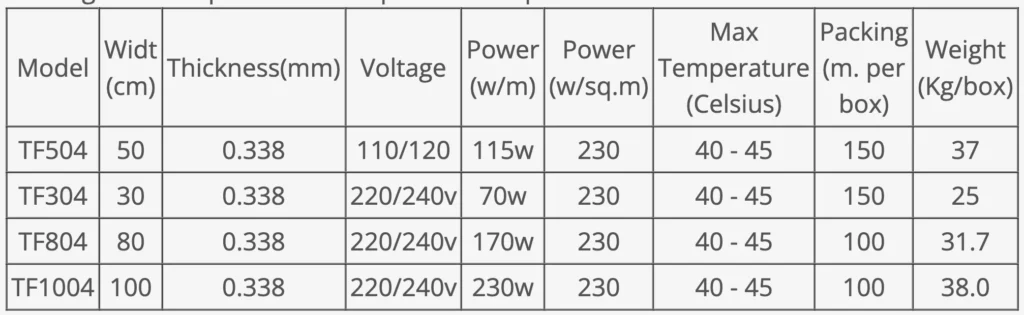

Heating film with power consumption 21w/sq.ft
Model Widt
(cm)
Thickness(mm) Voltage Power
(w/m)
Power
(w/sq.m)
Max
Temperature
(Celsius)
Packing
(m. per box)
Weight
(Kg/box)
TF504 50 0.338 110/120 115w 230 40 - 45 150 37
TF304 30 0.338 220/240v 70w 230 40 - 45 150 25
TF804 80 0.338 220/240v 170w 230 40 - 45 100 31.7
TF1004 100 0.338 220/240v 230w 230 40 - 45 100 38.0
Heating film with power consumption 21w/sq.ft
Model Widt(ft) Thickness
(mm)
Voltage Power
(w/ft)
Power
(W/sq.ft)
Max
Temperature
(Fahrenheit)
Packing
(ft/per. Box)
Weight
(lb/box)
TF504 19 3/4” 0.338 110/120 10.6w 21 104 - 113 150 81.6
TF304 11 13/16” 0.338 220/240v 6.5w 21 104 - 113 150 55.0
TF804 31 1/2” 0.338 220/240v 15.8w 21 104 - 113 100 69.88
TF1004 39 3/8” 0.338 220/240v 21.0w 21 104 - 113 100 85.00

Subsidiary materials included for installation of in floor radiant heat

ConnectorConnector

Insulation TapeInsulation Tape

Insulation PadInsulation Pad

6mm cork6mm cork
